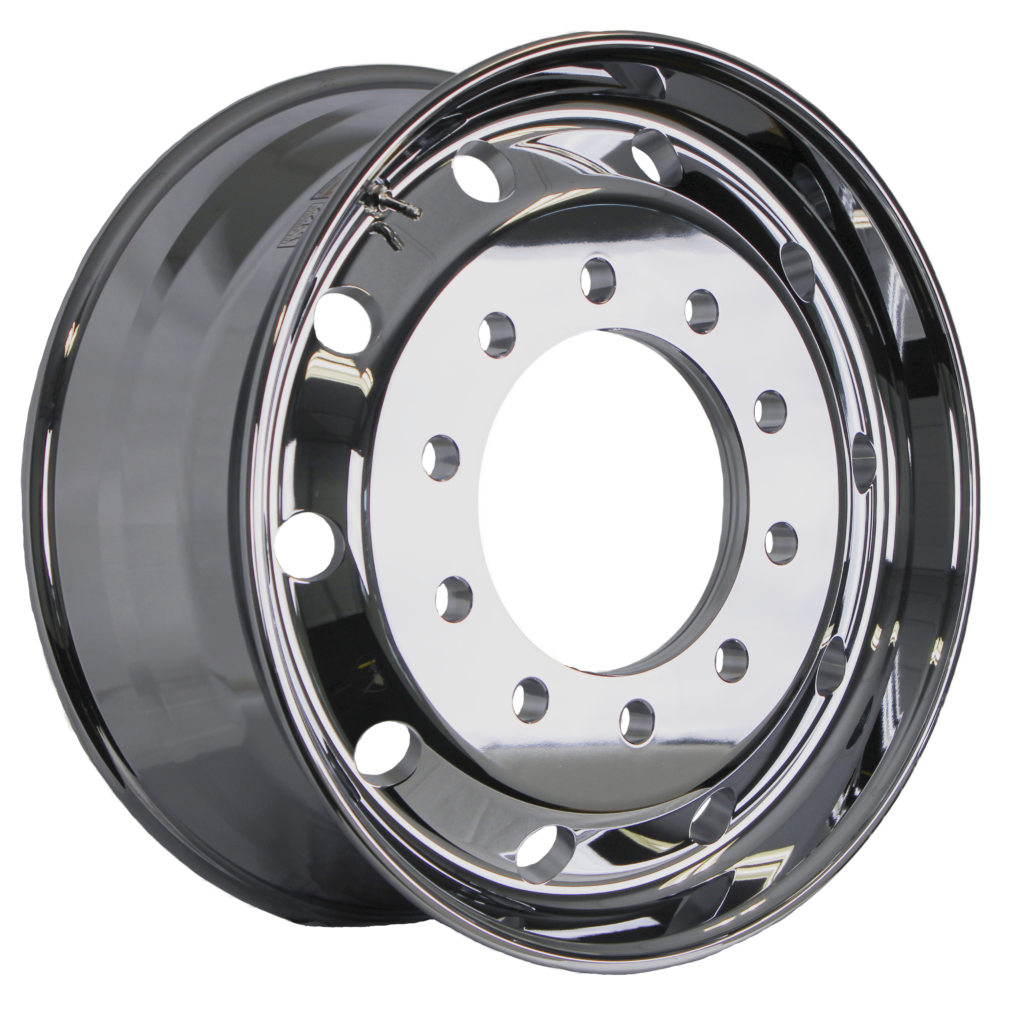

EURO/Jap, Trailer Fitment
EU/JAP Drive/Steer
22.5" x 8.25"
10/335
A premium alloy wheel that allows you to nearly halve your tare weight, these drive/steer wheels can be supplied with retrofit wheel nuts for an easy change-over from your current set-up.
Suited to European (Volvo, Mercedes, Scania) or Japanese (Isuzu, Hino, Fuso) trucks with 10/335 PCD axles.
AVAILABLE FINISHES
Chrome
ArmourBrite
Polished
Machined
Specifications
| DESCRIPTION | PART # | Finish | Inset (mm) | Outset (mm) | Thickness (mm) | Number Of Stud Holes | Stud Hole Dia (mm) | Centre Bore Dia (mm) | Max Load (Kg) | Valve | Tyre | Add to Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EU/JAP Drive/Steer | ARA154-26 | ArmourBrite | 144 | 167 | 23 | 10 | 26 | 281 | 3650 | 70MS-07N | 11R22.5 | Add |
| EU/JAP Drive/Steer | ARC154-26 | Chrome | 144 | 167 | 23 | 10 | 26 | 281 | 3650 | 70MS-07N | 11R22.5 | Add |
| EU/JAP Drive/Steer | ARP154-26 | Polished | 144 | 167 | 23 | 10 | 26 | 281 | 3650 | 70MS-07N | 11R22.5 | Add |
| EU/JAP Drive/Steer | ARM154-26 | Machined | 144 | 167 | 23 | 10 | 26 | 281 | 3650 | 70MS-07N | 11R22.5 | Add |
| EU/JAP Drive/Steer | ARA154-32 | ArmourBrite | 144 | 167 | 23 | 10 | 32 | 281 | 3650 | 70MS-07N | 11R22.5 | Add |
| EU/JAP Drive/Steer | ARC154-32 | Chrome | 144 | 167 | 23 | 10 | 32 | 281 | 3650 | 70MS-07N | 11R22.5 | Add |
| EU/JAP Drive/Steer | ARP154-32 | Polished | 144 | 167 | 23 | 10 | 32 | 281 | 3650 | 70MS-07N | 11R22.5 | Add |
| EU/JAP Drive/Steer | ARM154-32 | Machined | 144 | 167 | 23 | 10 | 32 | 281 | 3650 | 70MS-07N | 11R22.5 | Add |
| EU/JAP Drive/Steer | ARA154-VOL | ArmourBrite | 144 | 167 | 23 | 10 | Volvo | 281 | 3650 | 70MS-07N | 11R22.5 | Add |
| EU/JAP Drive/Steer | ARP154-VOL | Polished | 144 | 167 | 23 | 10 | Volvo | 281 | 3650 | 70MS-07N | 11R22.5 | Add |
